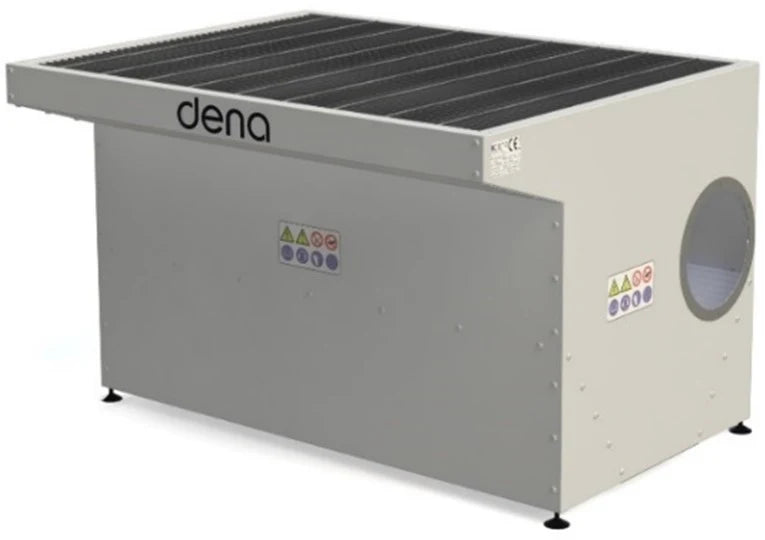

Dena Downdraft Table BAC

Dena Downdraft Table BAC

CONTACT US FOR PRICING CONSULTATIONS

MODEL BAC
DESCRIPTION & SPECIFICATIONS:
The BAC series suction benches represent the ideal solution for those who need to connect the benches to a system with a centralized filter. They are recommended for applications, even heavy ones, and for intensive use in the presence of fumes, dust and other pollutants. In this version the bench must be connected to a fan or external filters.

Standard equipment:

  • SHAPE FOR OPERATOR SEAT
  • GALVANIZED SHEET METAL CONSTRUCTION
  • DUST COLLECTION CONTAINER
  • BUILT-IN RUN/STOP SWITCH

Options available on request

  • SHAPE FOR OPERATOR SEAT
  • GALVANIZED SHEET METAL CONSTRUCTION
  • DUST COLLECTION CONTAINER
  • BUILT-IN RUN/STOP SWITCH

Please find Sizes for the downdraft table below, ATEX Rated is also available

Model Code
Length Width (mm)
Useful Working Surface (m2)
Filters/Filtering surface (n°)- (m2)
Suggested Rate Flow (m3/h)
Filter cleaning system
Fan Power (Kw)
BAC-10
1000X900
1
N.P.
2000
N.P.
N.P.
BAC-15
1500X900
1.5
N.P.
2700
N.P.
N.P.
BAC-20
2000X900
2
N.P.
3600
N.P.
N.P.
BAC-25
2500X900
2.5
N.P.
4500
N.P.
N.P.

VERSION SUITABLE FOR ATEX ZONE GD-2/22
BAC-10-EX
1000X900
1
N.P.
2000
N.P.
N.P.
BAC-15-EX
1500X900
1.5
N.P.
2700
N.P.
N.P.
BAC-20-EX
2000X900
2
N.P.
3600
N.P.
N.P.
BAC-25-EX
2500X900
2.5
N.P.
4500
N.P.
N.P.
