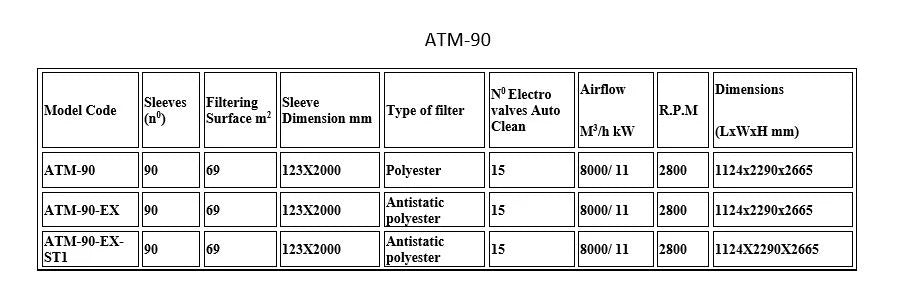

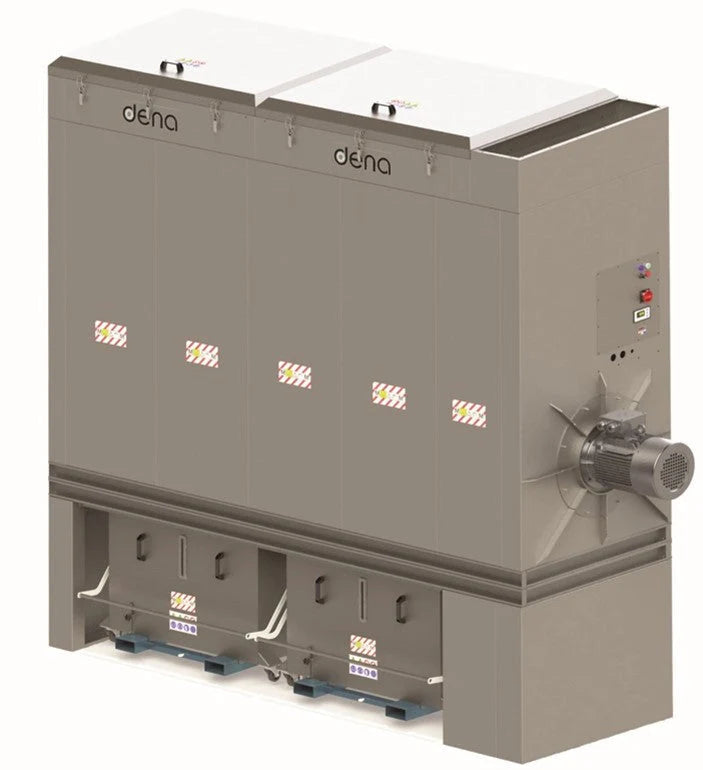

Dena Baghouse Dust Extractor ATM-90

DESCRIPTION & SPECIFICATIONS:

The ATM baghouse filter is designed for the suction of dust, wood chips, PVC and other materials. The ATM series is equipped with automatic cleaning system, dust blaster pro, which allows continuous cleaning of the filter sleeves using compressed air. The fan, integrated control panel, and high-capacity containers give the ATM series great versatility of use. The unit is designed to operate in depression, ensuring maximum filtration efficiency and safety against fires and explosions.

Upon request, components compliant with ATEX regulations are available, including electric motor, explosion-proof panel, fire extinguisher, electrical panel etc. The high efficiency reverse-blade centrifugal fan is positioned internally in the unit, allowing a reduction in noise.

Standard

• Cartridge Cleaning with compressed air jets and timer
• Quick release dust collection container
• settling chamber
• Integrated fan with soundproofing
• visual inspection port
• control panel
• wheel kit

Optional

• Motor start up with inverter
• filter cleaning economizer
• fire suppression system
• ATEX II3D Version
• ATEX ST1 Version for explosive dusts
• HEPA H13 Filter

ATEX Rated is also available, see Below
