Cormak WL3+WF3 Heavy load moving system skate set 6 TON

WL3+WF3 Heavy load moving system skate set 6 TON

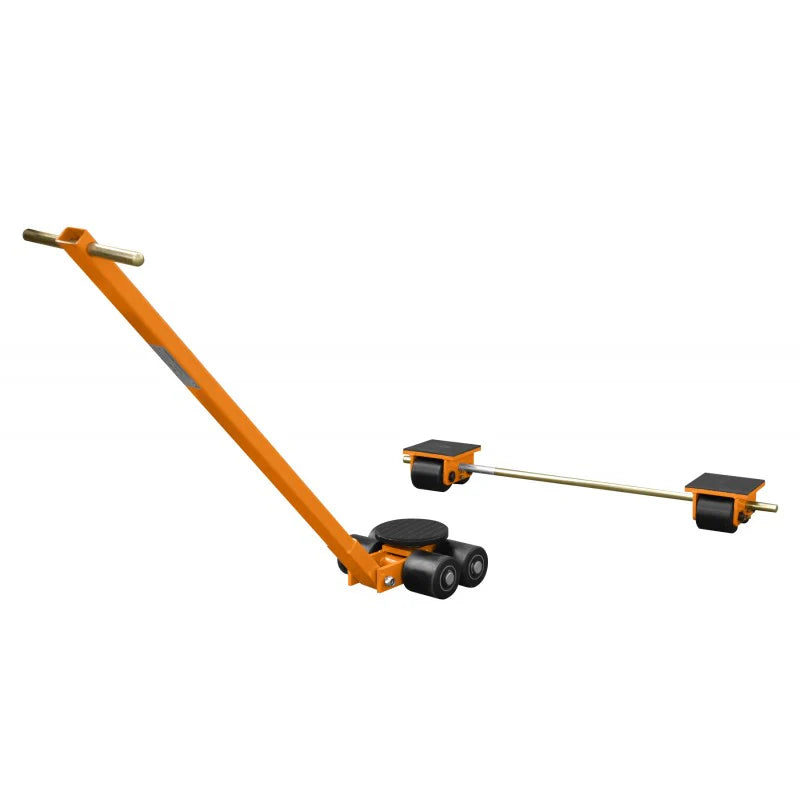

A set of transport rollers consisting of a WL3 running platform and a WF3 transport chassis. The maximum lifting capacity of the set is 6 tons. Transport rollers allow safety and easy transport of heavy items. Thanks to the use the polyurethane tread rollers, the transported machine and floor are not damaged.

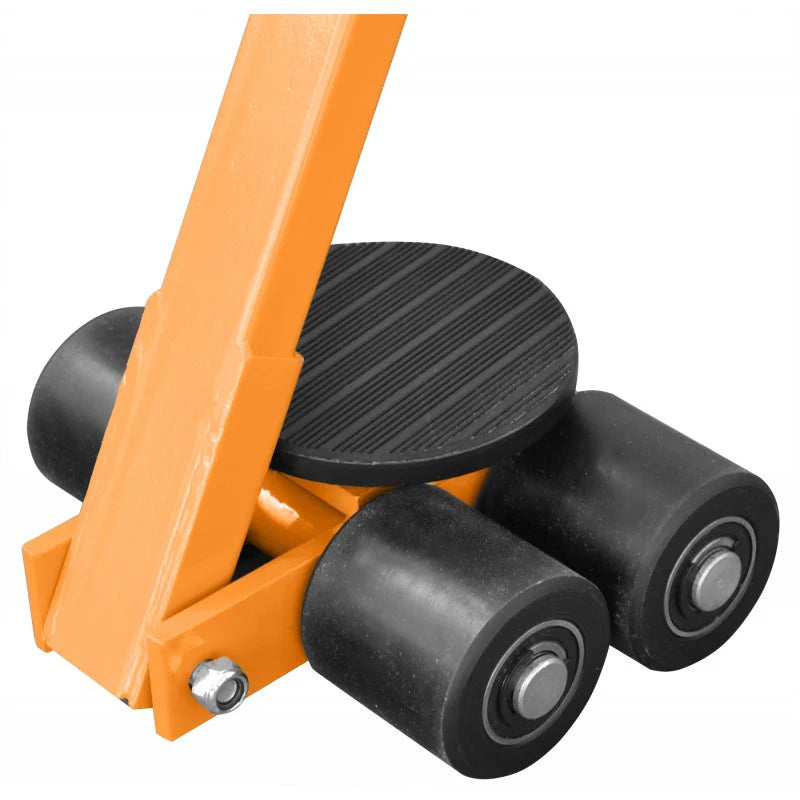

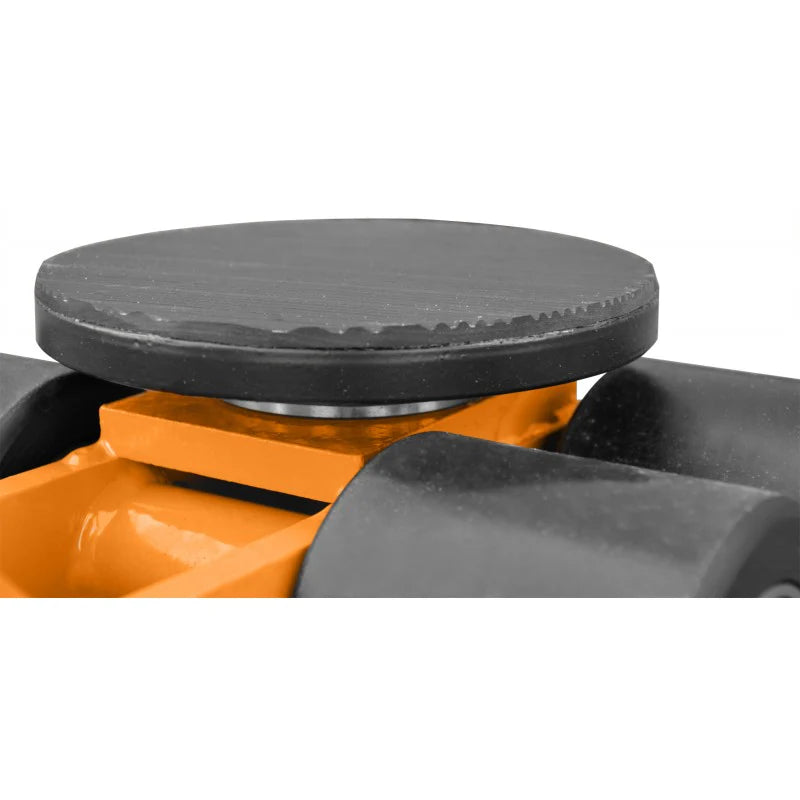

Technical Specifications for WL3

• Size of rollers: 85x85mm
• Number of rollers: 4
• Loading weight: 3000kg
• Loading height: 110mm
• Bearing surface for the element: 170mm
• Support points: 1
• Length of shaft: 960mm
• Turning angle of shaft: 90°
• Dimensions: 270x230mm
• Weight: 12kg

Technical Specifications for WF3

• Size of rollers: 85x85mm
• Number of rollers: 4
• Loading weight: 3000kg
• Loading height: 110mm
• Supporting surface for the element: 150x150mm
• Support points: 2
• Connector length: 1000mm
• Spacing width between rollers: 300-1000mm
• Weight: 15kg
