Cormak WL18+WF18 Heavy load moving system skate set 36 TON

WL18+WF18 Heavy load moving system skate set 36 TON

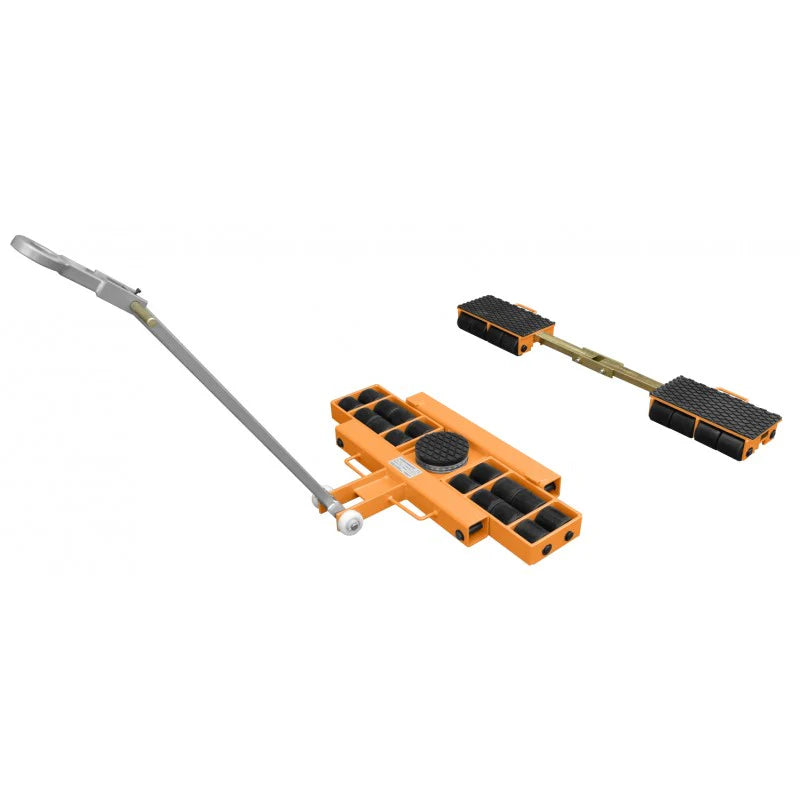

A set of transport rollers consisting of a WL18 running platform and a WF18 transport chassis. The maximum lifting capacity of the set is 36 tons. Transport rollers make it easy and safe to transport heavy items. Thanks to the use of polyurethane tread rollers, the transported machine and floor are not damaged.

Technical Specifications for WL18

• Roller size: 85x85mm
• Number of rollers: 16
• Loading capacity: 18000kg
• Loading height: 110mm
• Bearing surface on element: 170mm
• Support points: 1
• Length of shaft: 1080mm
• Turning angle of shaft: 90°
• Dimensions: 1030x620mm
• Weight: 137kg

Technical Specifications for WF18

• Roller size: 85x85mm
• Number of rollers: 16
• Loading capacity: 18000kg
• Loading height: 110mm
• Bearing surface on element: 200x407mm
• Support points: 2
• Connector Length: 1430mm
• Width of spacing rollers: 1014-1430mm
• Weight: 50kg
