Cormak Q10E25 Electric Mast Pallet Jack 2500mm 1000kg

Cormak Q10E25 Electric Mast Pallet Jack 2500mm 1000kg


Q10E25 Electric Mast Pallet Jack 2500mm 1000kg

A new better model!

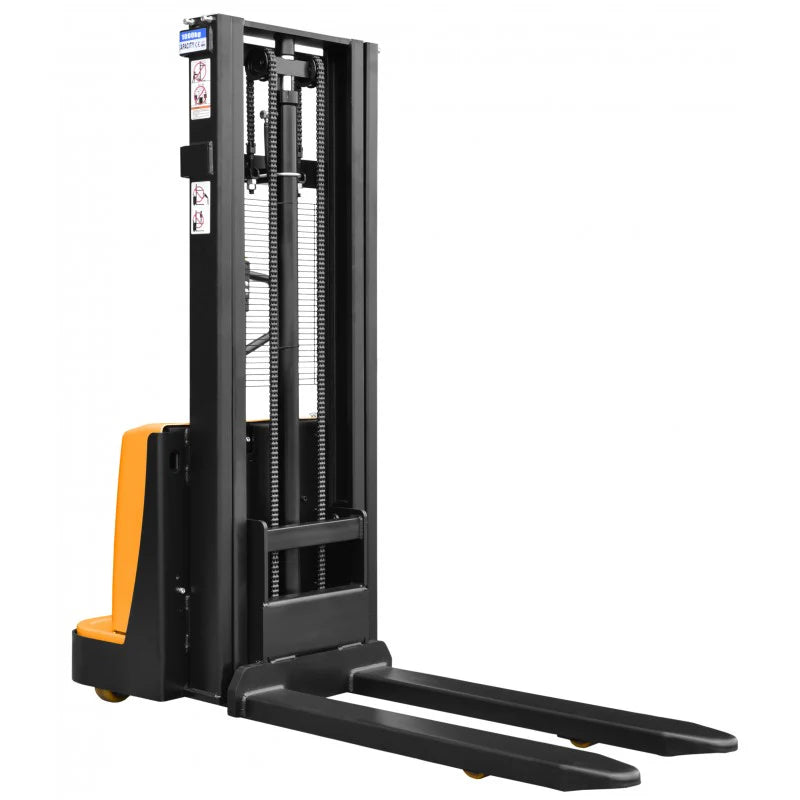

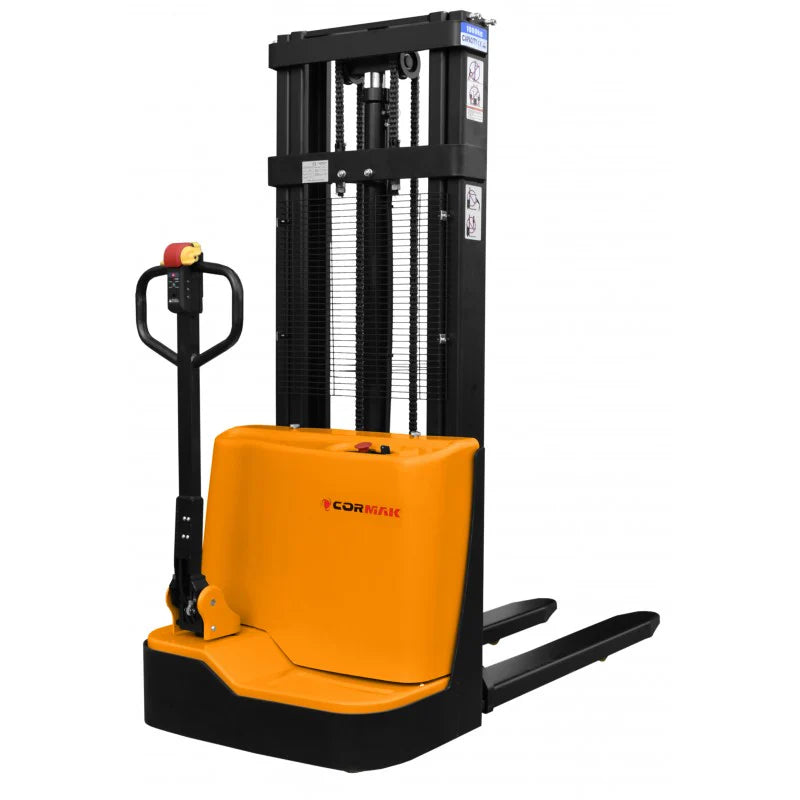

Electric high bay pallet truck (stacker), equipped with an electric trolley and lifting system.


  • A solid structure made of high-quality steel provides greater rigidity and stability during lifting.
  • Safety switch.
  • Built-in controller to protect the battery from discharging or damaging
  • Sealed maintenance-free AGM battery
  • Built-in charger

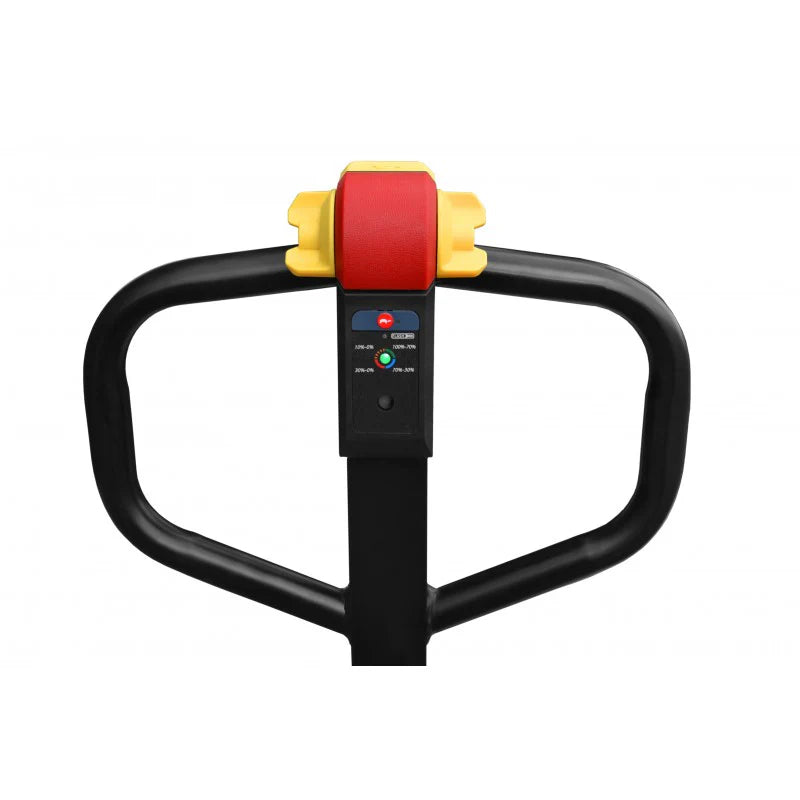

  • LED battery charge indicator and "abdominal" safety switch to prevent hitting the operator
  • Speed ​​controller for safe driving and speed limits
  • Turtle Ride Mode

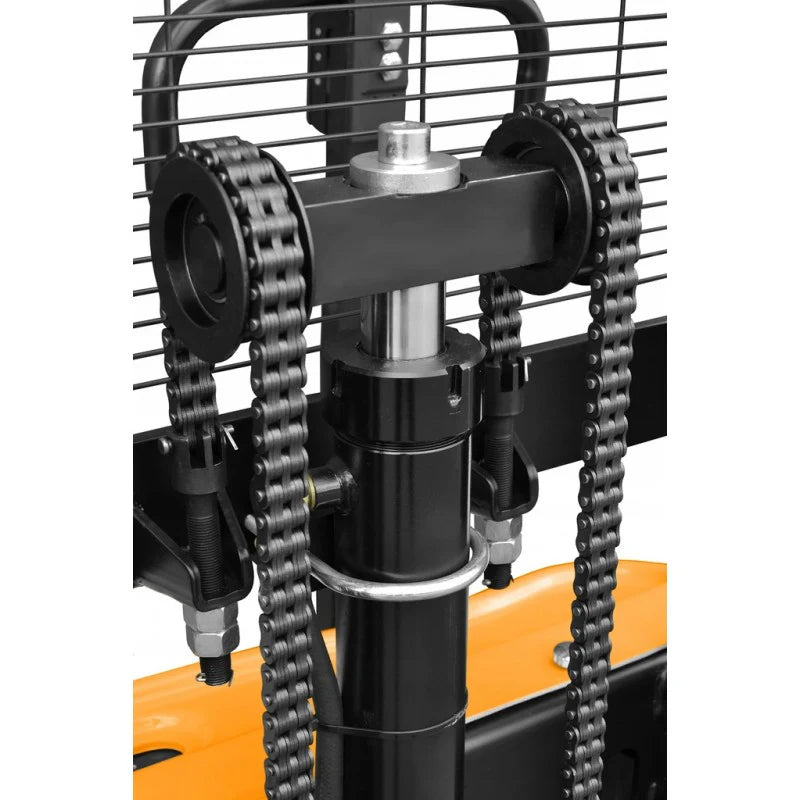

  • Electric lifting and lowering under full operator control

Technical Specifications

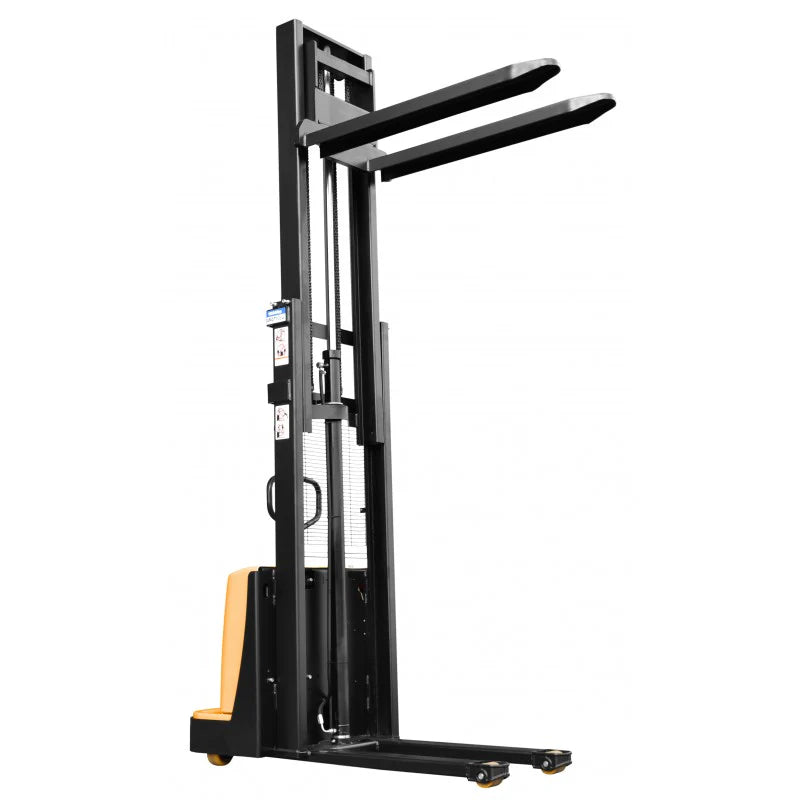

  • Max height of lift: 2500mm
  • Capacity: 1000kg
  • Fork length: 1150mm
  • Height with forks lowered: 1830mm
  • Height with fork raised: 3050mm
  • Fork dimensions: 60x142x1150mm
  • Fork spread: 550mm
  • Total width: 790mm
  • Total length: 1800mm
  • Clearance: 30mm
  • Turning radius: 1390mm
  • Travel speed with load / without load: 3.5/4.0 km/h
  • Lift speed with load/ without load: 0.1 / 0.2 m / s
  • Lowering speed with load / without load: 0.12 / 0.1 m / s
  • Hill Capacity with load / without load: 3/10%
  • Service brake type: Electromagnetic
  • Drive Power: 0.75kw
  • Lifting motor power: 2kw
  • Voltage / capacity of the battery: 12v 65ah 2 pcs
  • Weight: 540kg
