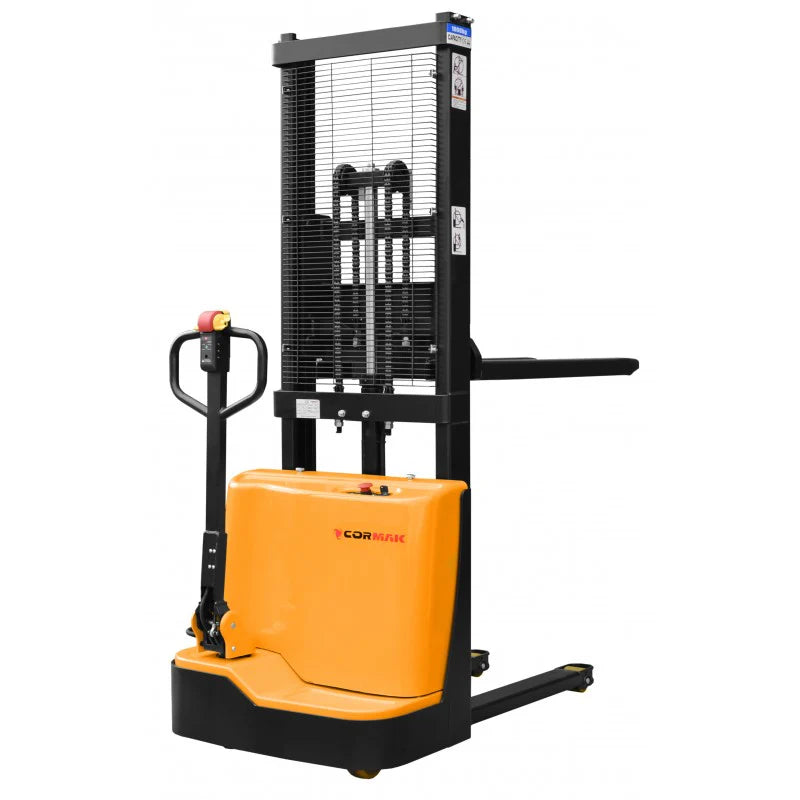

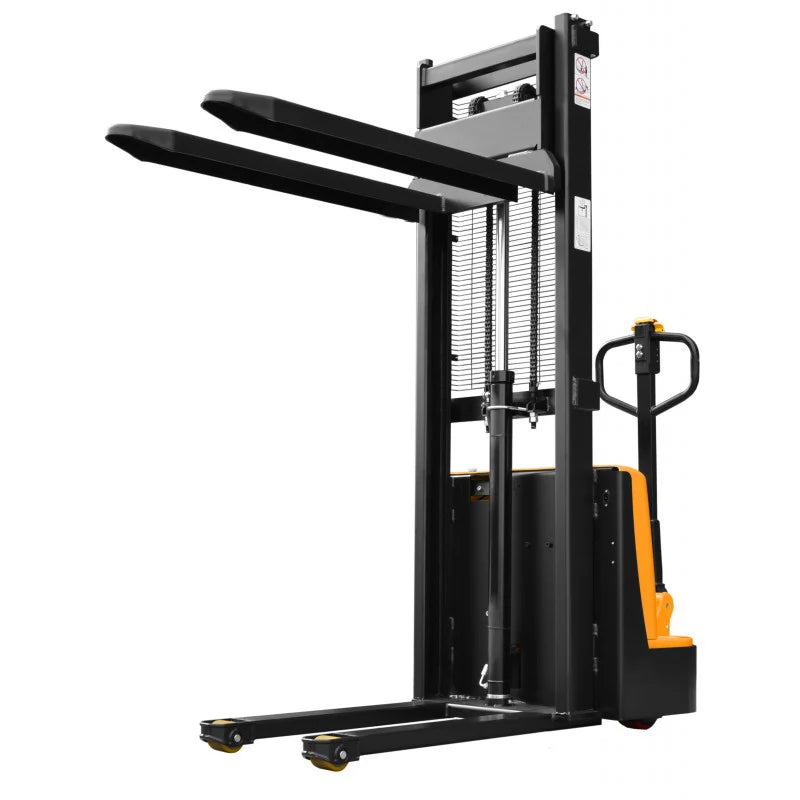

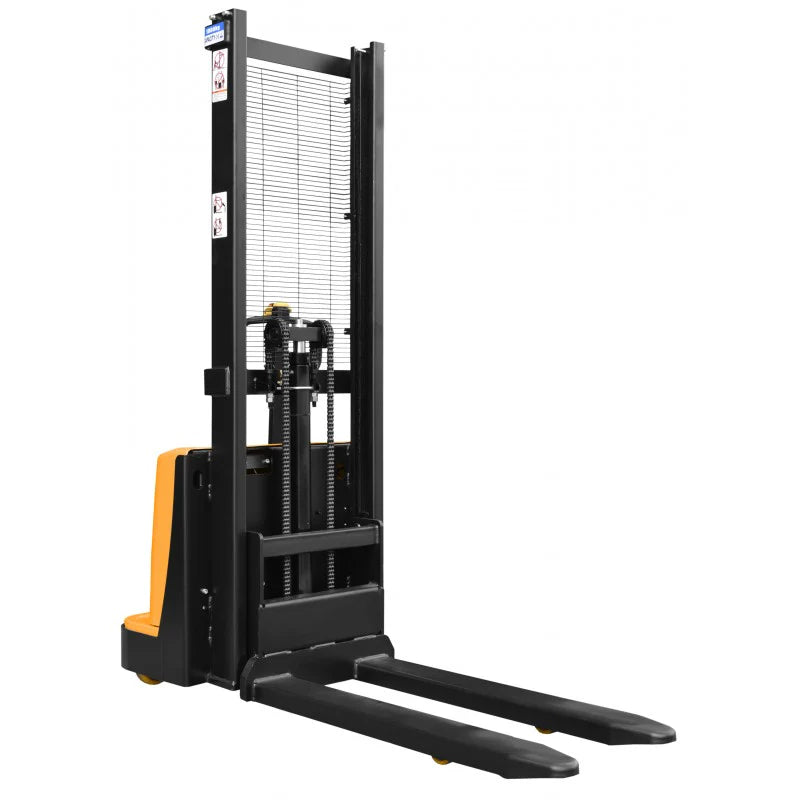

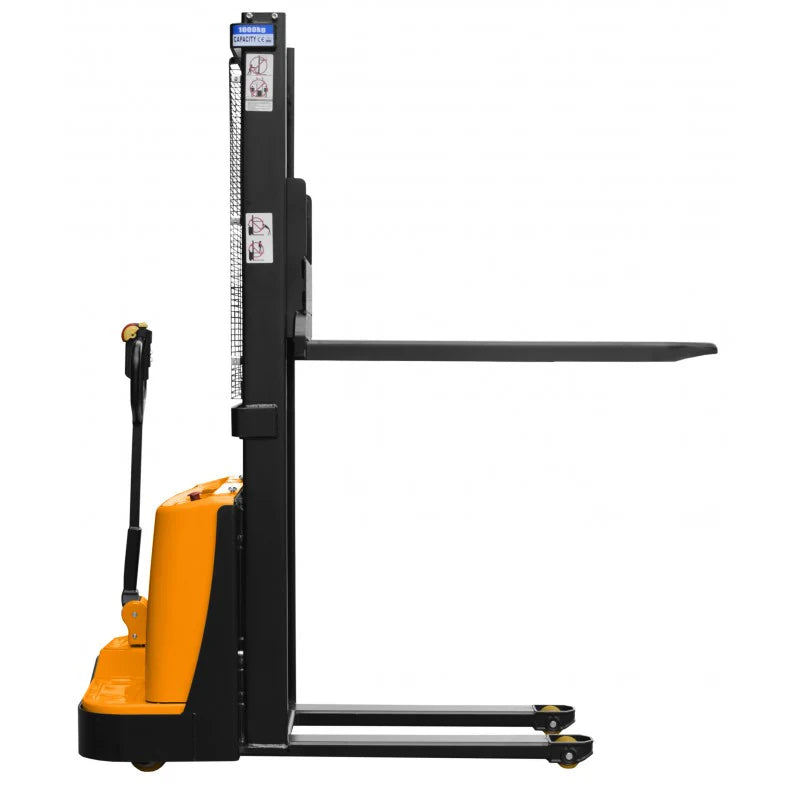

Cormak Q10E16 Electric Mast Pallet Jack 1600mm 1000kg

Cormak Q10E16 Electric Mast Pallet Jack 1600mm 1000kg


Q10E16 Electric Mast Pallet Jack 1600mm 1000kg

Electric high bay pallet truck (stacker), equipped with an electric trolley and lifting system.


  • A solid structure made of high-quality steel provides greater rigidity and stability during lifting.
  • Safety switch.
  • Built-in controller to protect the battery from discharging or damaging
  • Sealed maintenance-free AGM battery
  • Built-in charger

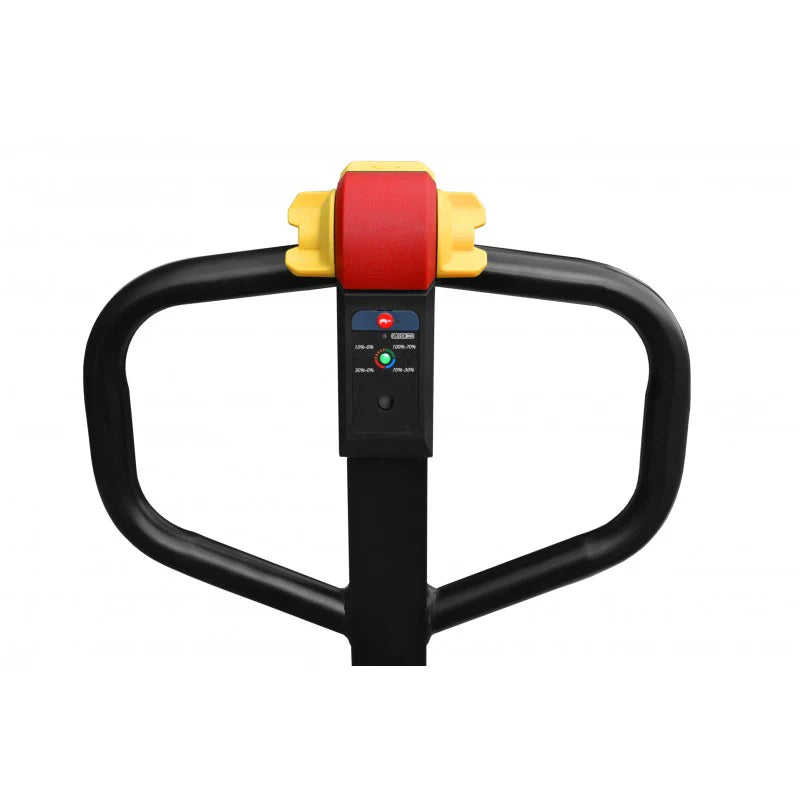

  • LED battery charge indicator and "abdominal" safety switch to prevent hitting the operator
  • Speed ​​controller for safe driving and speed limits
  • Turtle Ride Mode

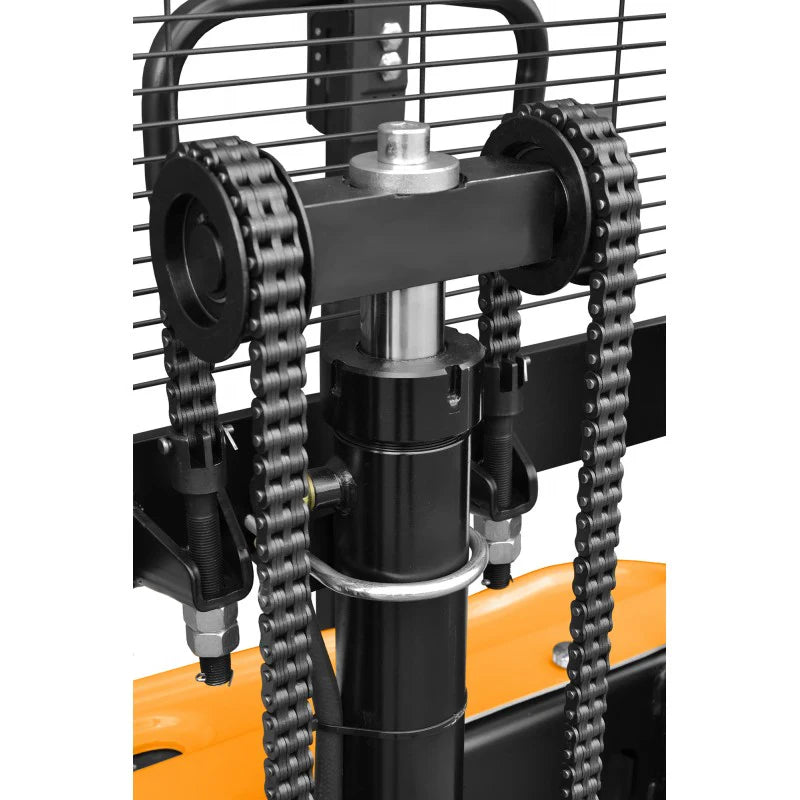

  • Electric lifting and lowering under full operator control

Polyurethane wheels and rollers
These types of rollers are universal for all types of surfaces. They are characterized by high abrasion resistance and increased resistance to mechanical damage. They guarantee quiet operation and low rolling resistance.

Technical Specification

  • Max height of lift: 1600mm
  • Capacity: 1000kg
  • Fork length: 1150mm
  • Height with forks lowered: 2090mm
  • Height with fork raised: 2090mm
  • Fork dimensions: 60x142x1150mm
  • Fork spread: 550mm
  • Total width: 790mm
  • Total length: 1780mm
  • Clearance: 30mm
  • Turning radius: 1390mm
  • Travel speed with load / without load: 3.5/4.0 km/h
  • Lift speed with load/ without load: 0.1 / 0.2 m/s
  • Lowering speed with load / without load: 0.12 / 0.1 m/s
  • Hill capacity with load / without load: 3/10%
  • Service brake type: Electromagnetic
  • Drive Power: 0.75kw
  • Lifting motor power: 2kw
  • Voltage / capacity of the battery: 12v 65ah 2 pcs
  • Weight: 530kg
