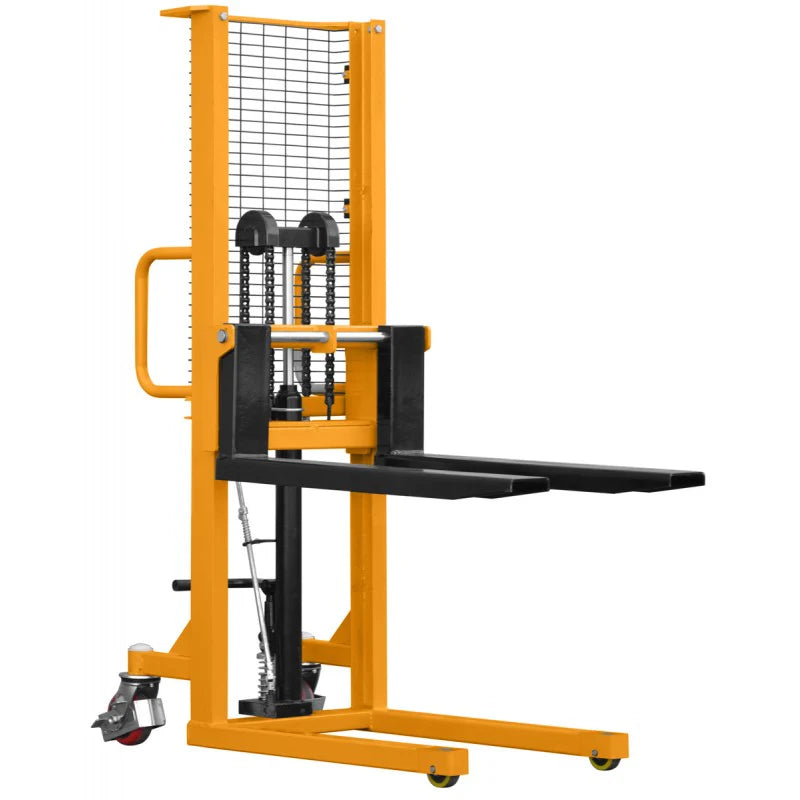

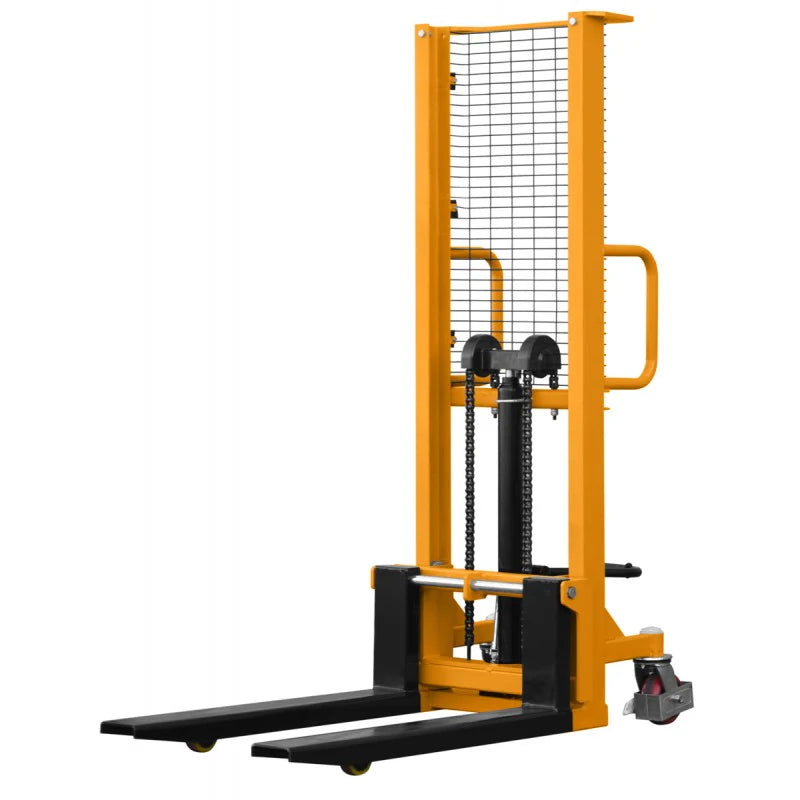

Cormak P513 Hydraulic Mast Pallet Stacker

Cormak P513 Hydraulic Mast Pallet Stacker


P513 Hydraulic Mast Pallet Stacker

New, manually operated mast pallet jack. Easy in handling and reliable. Hydraulic lifting via foot pedal, smooth lowering through a lever.

Machine features

  • Mast pallet jack of 500kg capacity, with double polyurethane rolls for quiet, stable and trouble-free work. Designated for warehouses, shops and loading/unloading trucks.

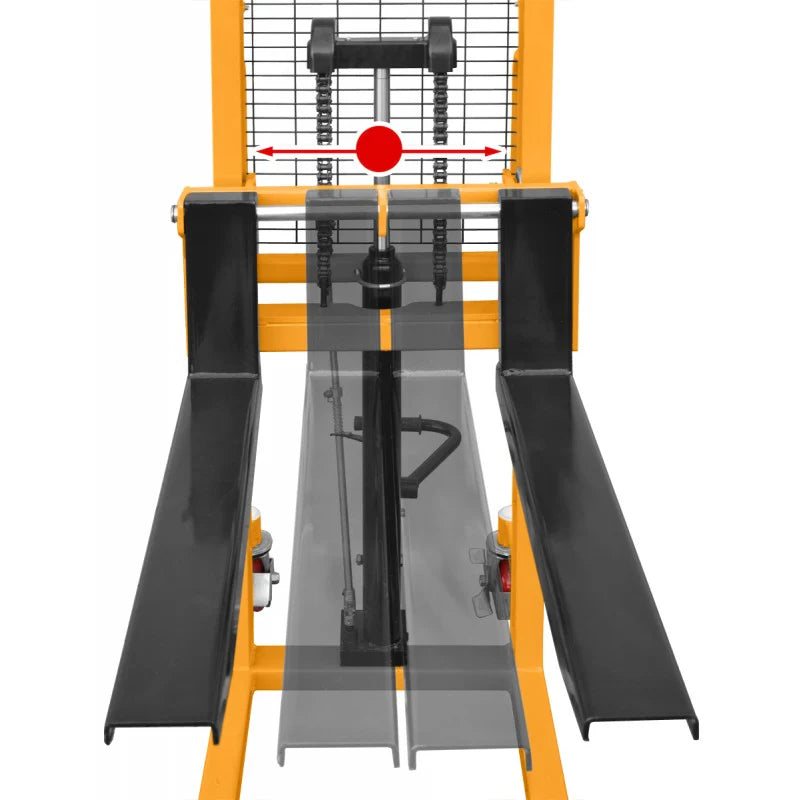

  • Capable of fork width adjustment between 220 - 560 mm

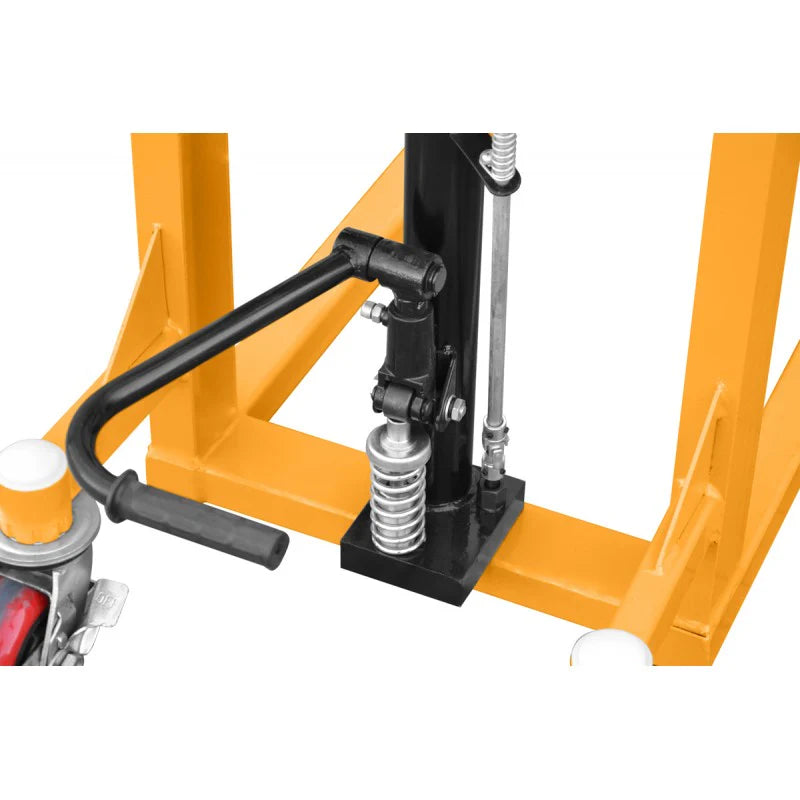

  • Strengthened foot pump with a simple fork lowering mechanism.

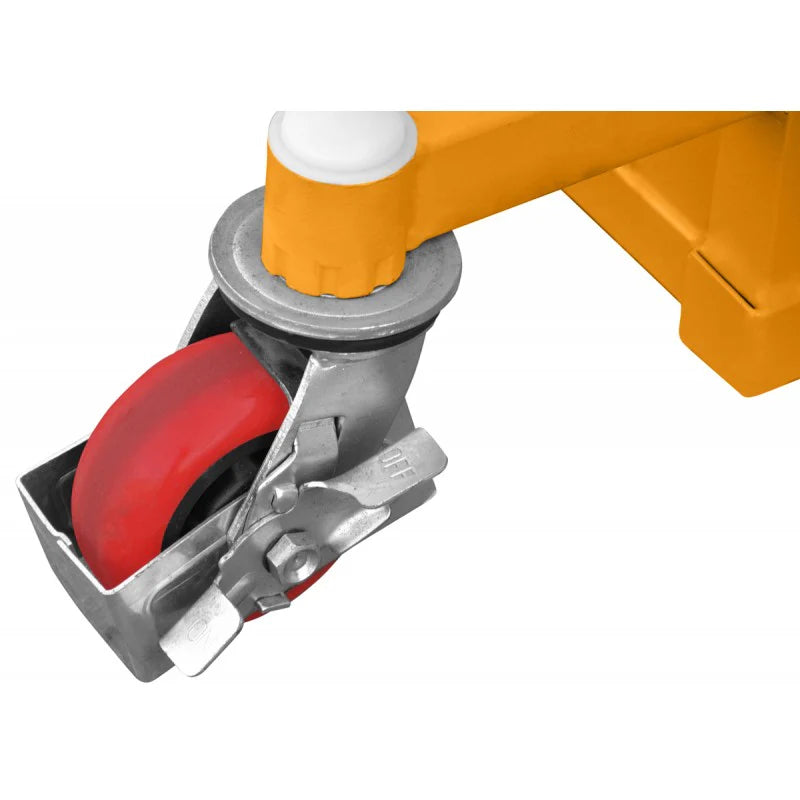

  • By default, equipped with a foot parking brake.
  • Stepless fork lowering with a hydraulic pump
  • Rigid, reliable design
  • Overload protection valve

Technical Specification

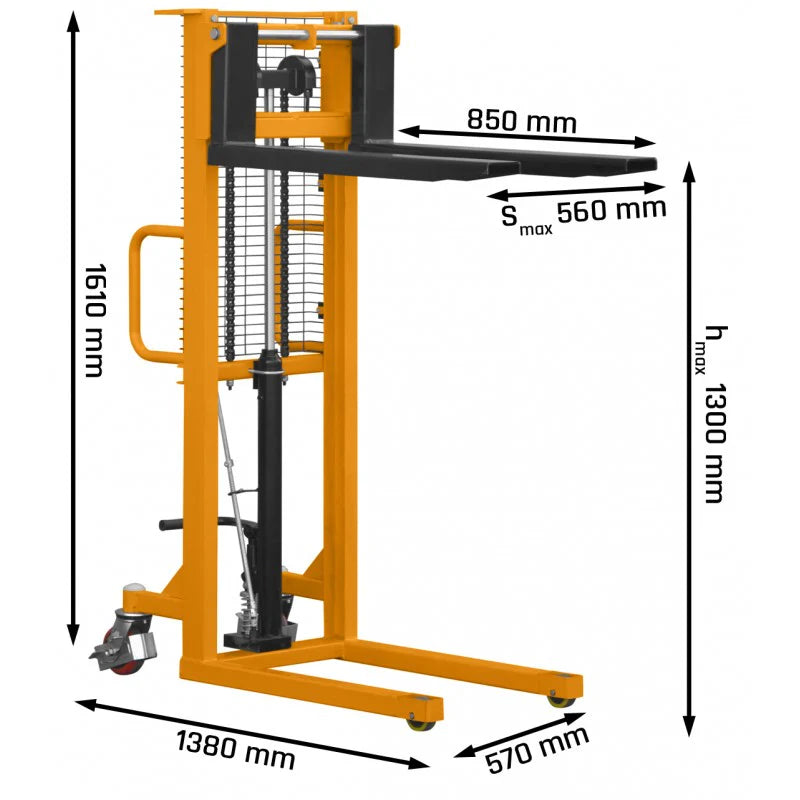

  • Forks dimensions: 850x110mm
  • Forks spacing: 220-560mm

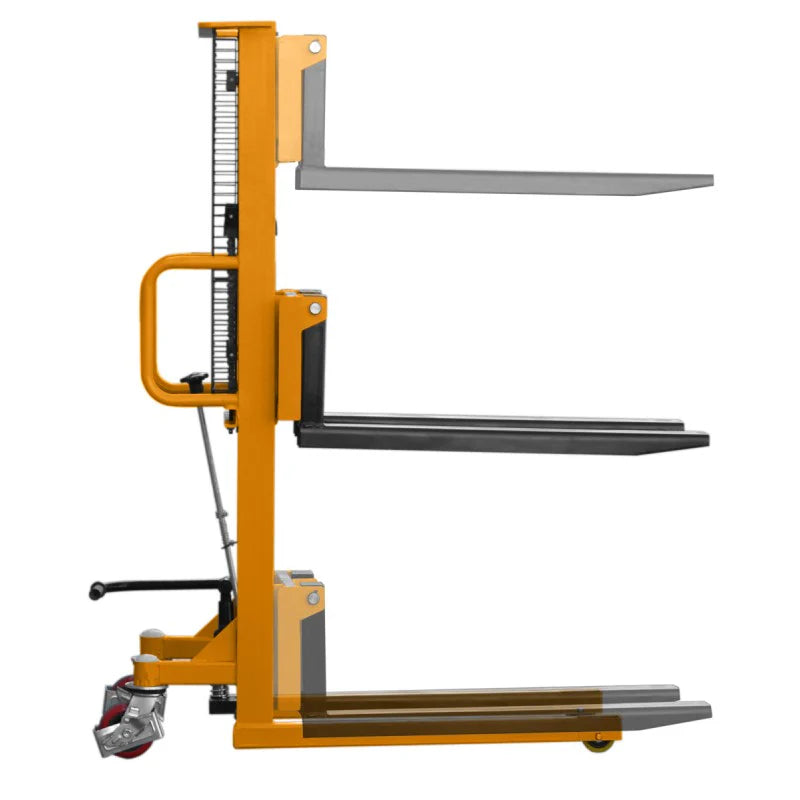

  • Lifting height: 85-1300mm
  • Dimensions: 1380x570x1610mm
  • Loading capacity: 500kg
  • Weight: 105kg
