Cormak Electric Pallet Stacker Forklift Q20 2000kg
Cormak Electric Pallet Stacker Forklift Q20 2000kg
CONTACT US FOR PRICING CONSULTATIONS

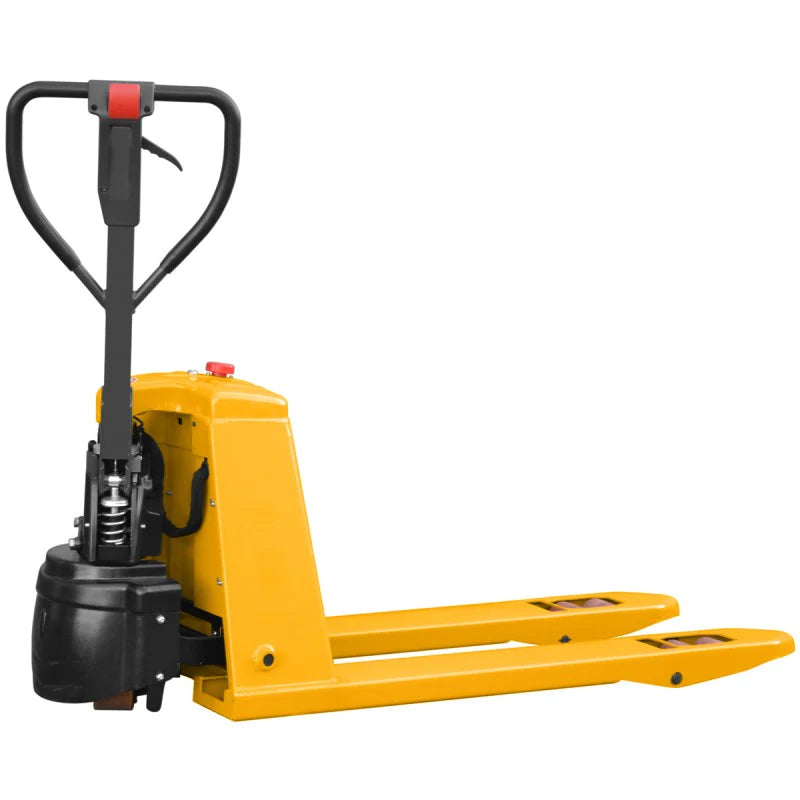

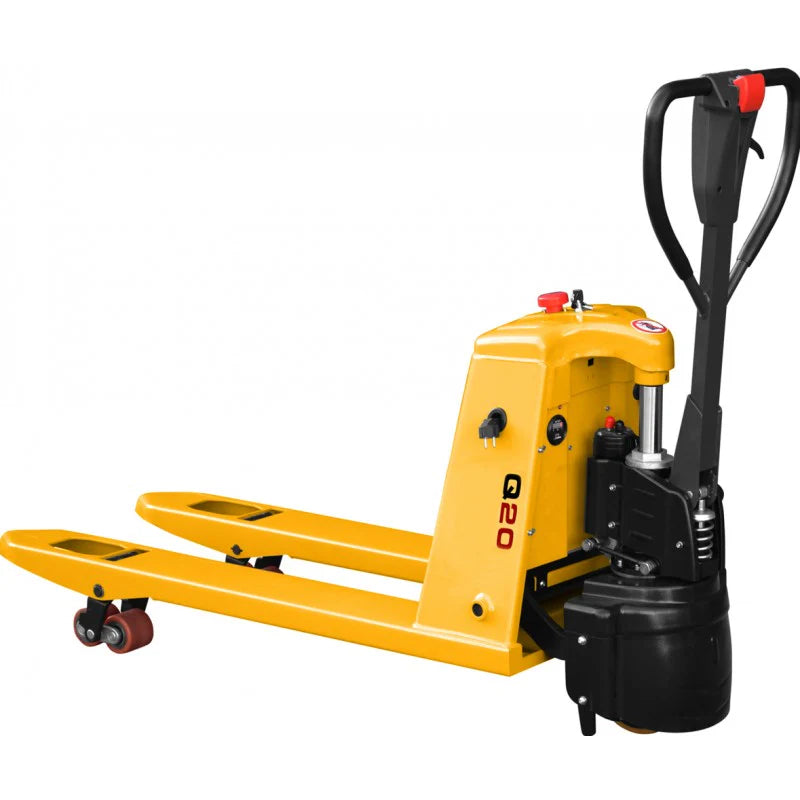

Electric Pallet Stacker Forklift Q20 2000kg
ELECTRIC TROLLEY Q20 with lifting and electric drive. MAXIMUM CAPACITY 2 TONS! Very manoeuvrable thanks to its compact dimensions. It is used wherever the weight of the pallet exceeds 350 kg.
Machine characteristics
- Comfortable and easy to use thanks to electric driving
- Easy to operate due to smooth speed regulation
- Very manoeuvrable thanks to its compact dimensions

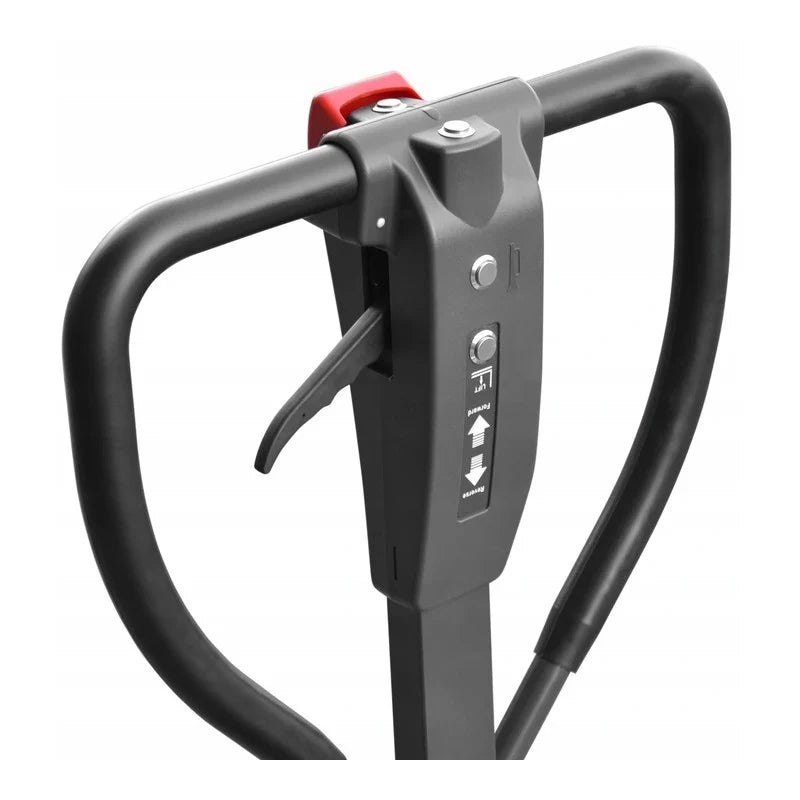

- Ergonomic control handle with a button for slow travel
- Built-in rectifier
- Maintenance-free motor with brushless technology
- Sealed maintenance-free AGM battery

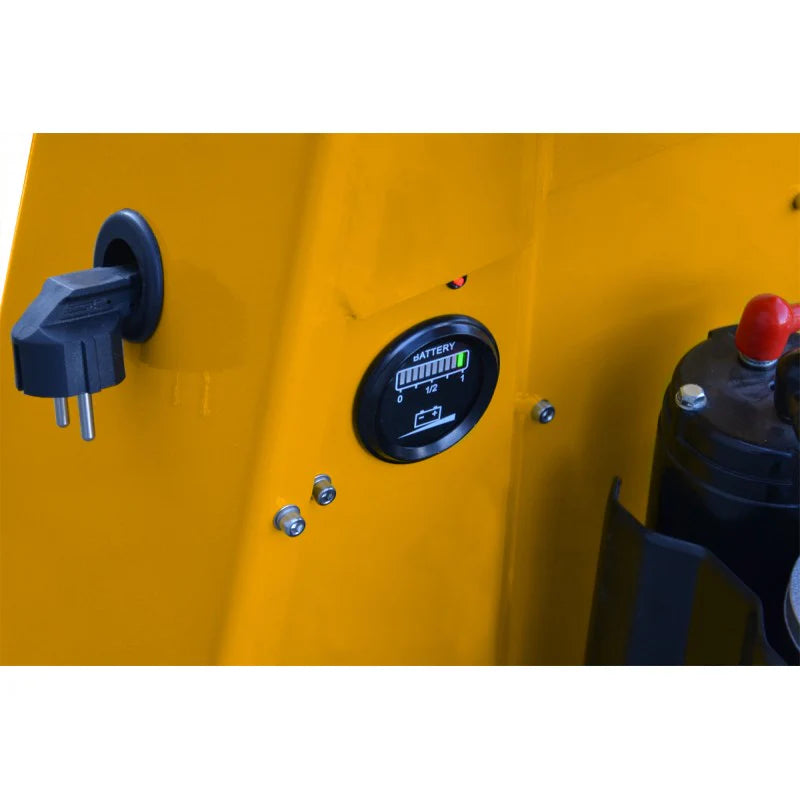

- Beeps when battery is low

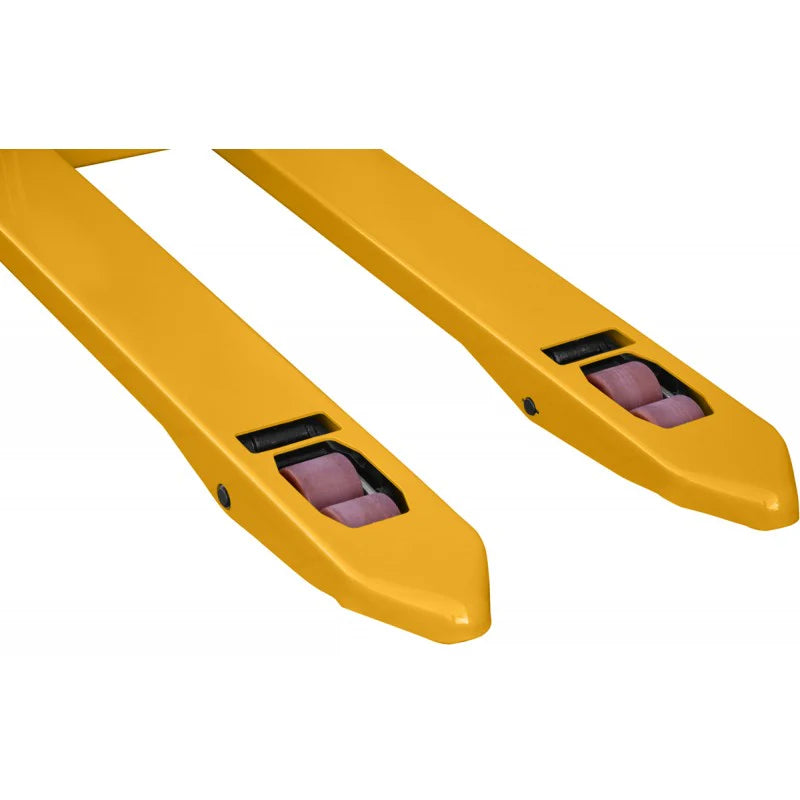

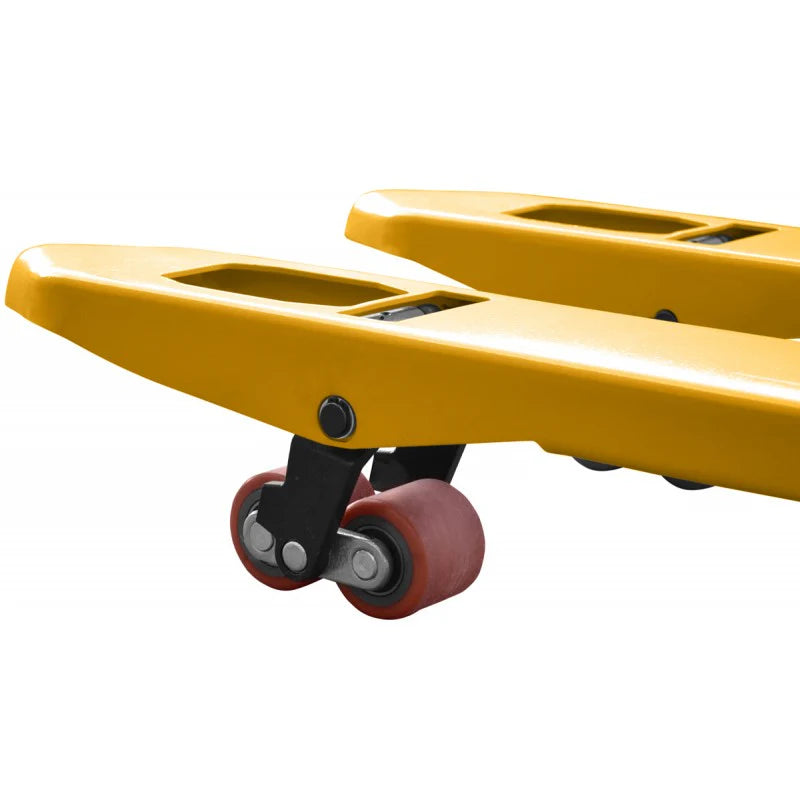

Polyurethane wheels and rollers
Rollers of this type are universal for all possible surfaces. They are characterized by high abrasion resistance and increased resistance to mechanical damages. They guarantee quiet operation and low rolling resistance.
Technical Specification
- Payload: 2 tons
- Turning radius: 1350mm
- Circle: 210x70mm
- Forks outer dimensions: 560mm
- Forks internal dimensions: 240mm
- Height of forks lowered: 85mm
- Height of forks raised: 200mm
- Forks length: 1150mm
- Drive motor: 0.75kw
- Lift pump motor: 0.8kw
- Battery voltage / nominal capacity: 24/50 V / Ah
- Travel speed, laden / unladen: 3.5 / 4 km/h
- Maximum grade gradient, laden / unladen: 2/6%
- Weight: 180kg
- Dimensions: 1700x560x1220mm
